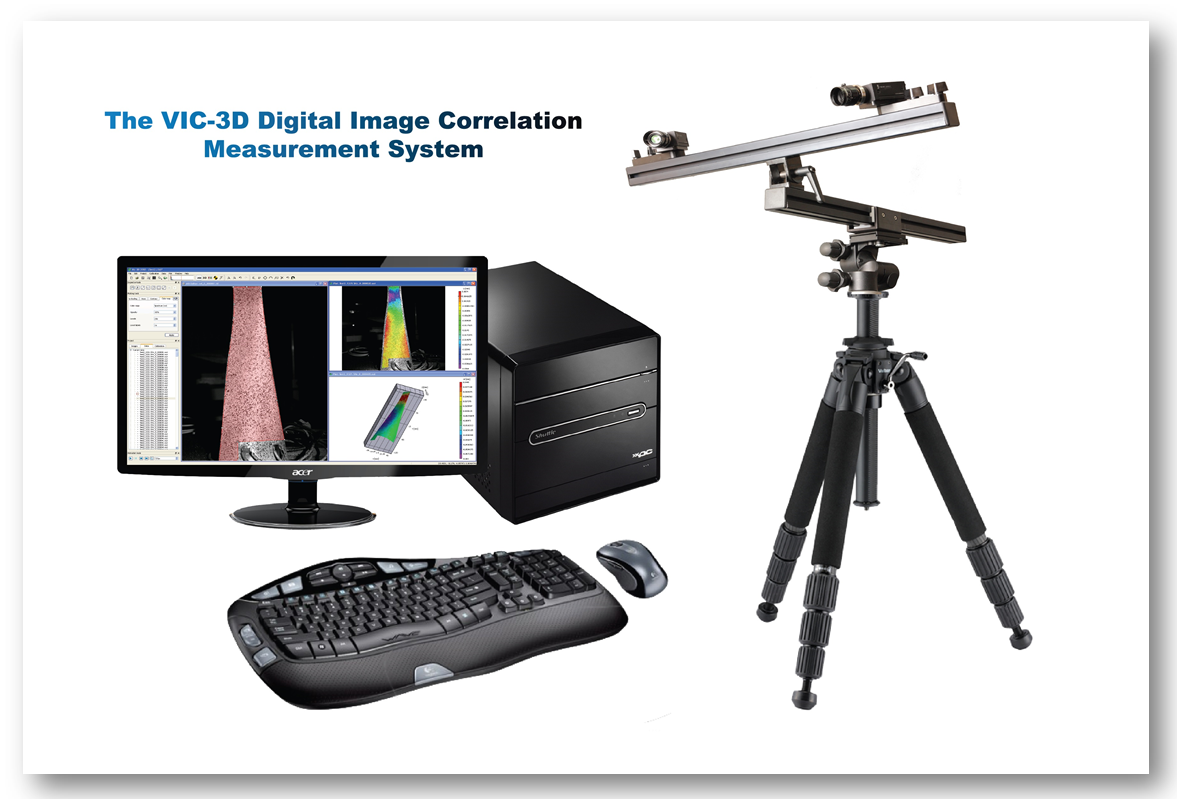

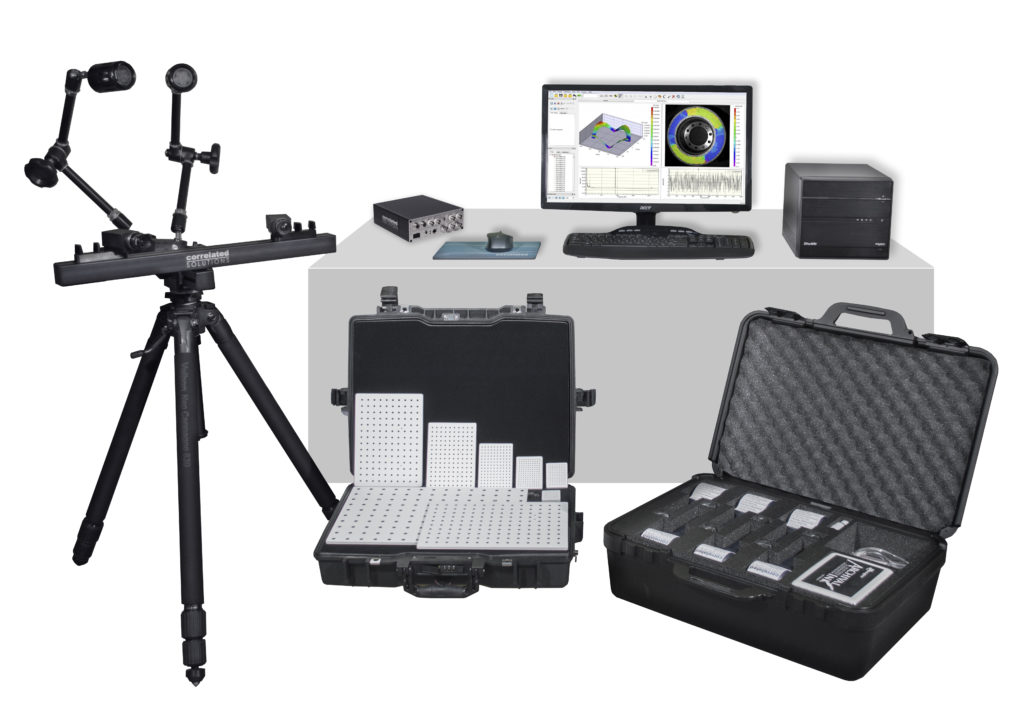

VIC-3D概述 Overview

VIC-3D 是一个强大的可视化的应变与运动测量系统。用于测量并可视化全场三维形貌、位移及应变。通过该系统，可在试样表面的每个点获取三维位移和应变数据。所有系统均可根据您的需求定制，适用于准静态和动态事件的多种尺寸尺度。所有系统均为交钥匙方案，包含必要软件、硬件、培训及技术支持，确保系统运行完全符合用户预期。

VIC-3D 可测量任意位移，分辨率可达纳米级（取决于物体尺寸），并能检测100微应变至2000%及以上的应变值，其应变分辨率可达50微应变或更佳。试样尺寸范围取决于校准程序及对应的随机散斑规格。无需特殊照明或激光设备，测试过程中与样品零接触。简而言之——只要肉眼可见，即可实现测量。

基于数字图像相关原理，VIC-3D 可提供形状、位移和应变的全场三维测量。 使用该技术，既可以测量实际的物体移动，也可以在试件表面的每个点上获得拉格朗日应变张量。

Vic-3D 可以实现从50个微应变到2000％以上的任意应变和位移的测量，样品尺寸范围从 < 1 毫米到 > 100 米，动态事件的捕获速率高达 5,000,000 fps（帧/秒）。

The VIC-3D system is a powerful turn-key solution for measuring and visualizing full-field, three-dimensional shape, displacement, and strain based on the principle of Digital Image Correlation. Using this method, 3D displacements and strains are available at every point on the specimen’s surface. All systems are customized to your needs, and are available for a wide range of size scales for quasi-static and dynamic events. All systems are turn-key which includes all necessary software, hardware, training, and technical support to ensure the system operates exactly as expected.

VIC-3D measures arbitrary displacements down to nanometer resolution (dependent upon the size of the object), and strains from 100 microstrain to 2000% and above are possible with 50 microstrain or better strain resolution.  Specimen sizes ranging from calibration procedure and an applied random speckle pattern. No special illumination or lasers are required and there is no contact with the specimen during testing. In summary…if we can see it, we can measure it.

VIC-3D provides full-field, 3-Dimensional measurements of shape, displacement and strain, based on the principle of Digital Image Correlation. Using this method, actual object movement is measured and the Lagrangian strain tensor is available at every point on the specimen’s surface.

Vic-3D can measure arbitrary displacements and strains from 50 microstrain to 2000% strain and above, Specimen sizes ranging from < 1 mm to > 100 m are possible, and dynamic events can be captured up to a rate of 5,000,000 fps (frames per second).

For more information, download our product brochure.

VIC-3D非接触全场应变测量系统：Download 中文版电子手册下载

2026.07.20： 重大升级，VIC-3D_V11.4 版本正式发布。（点击下划线部分直接跳转试用下载）

随着 11.4 版本的发布，业界标准的 VIC-3D 数字图像相关 (DIC) 平台持续迭代升级。本次更新搭载首发于 iDICs 行业会议的 vicpyx Python 模块，提供高阶 API，可直接在 VIC-3D 软件界面内运行自定义脚本。这使得研究人员无需将全场位移和应变数据导出到外部环境，即可对其进行复杂的自定义计算。

VIC-3D 11.4 推出了一系列扩展功能，旨在简化 DIC 结果与互补数据集的集成。这些针对有限元分析 (FEA) 验证的增强功能，有助于实现无缝工作流程、生成成形极限曲线 (FLC) 以及其他多模态应用。通过弥合实验数据与数值建模之间的差距，11.4版本同时提升了分析精度和处理效率。

如需了解这些新功能的技术概述，或讨论具体的应用需求，请与我们的销售工程师联系。

The industry-standard VIC-3D digital image correlation (DIC)  platform continues to evolve with the release of version 11.4.  Building on the vicpyx Python module introduced at iDICs, this  update provides a high-level API for executing custom scripts  directly within the VIC-3D workspace. This enables researchers to  perform complex, user-defined calculations on full-field displacement  and strain data without exporting to external environments.

VIC-3D 11.4 introduces a suite of extensions designed to streamline  the integration of DIC results with complementary datasets. These enhancements facilitate seamless workflows for Finite Element Analysis (FEA) validation, the  generation of Forming Limit Curves (FLC), and other multi-modal applications. By bridging the gap between  experimental data and numerical modeling, version 11.4 enhances both analytical precision and throughput.

For a technical overview of these new features or to discuss specific application requirements, please contact  one of our Sales Engineers.

VIC-3D 11.4 的增强分析功能

▪  端到端自动化:利用可直接对原始数据和图像序列进行操作的扩展功能，构建从数据采集到后处理的无缝处理流程。

▪  全域结果集成:全新的单次执行扩展功能可将感兴趣区域 (AOI)、检查器和变换直接写回您的 VIC-3D 项目。

▪  时序数据访问:扩展功能可访问相邻帧，以进行高级时间序列分析、速度计算和降噪处理。

▪  永久化配置:将自定义的扩展功能参数保存为默认值，以确保跨会话的一致性并消除重复设置。

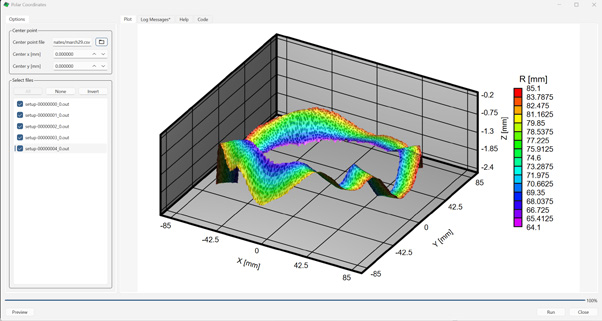

▪  扩展的标准工具集:原生支持 ISO12004(FLC) 、极坐标/柱坐标以及噪声基底分析，并可完全访问所有 3D 变量。

▪  开放式 Python 框架:可在用户界面内编写并部署自定义分析，以原生级功能形式运行，无需将数据导出至外部软件。

▪  免许可证只读浏览模式:允许协作者在只读查看器中打开并查看项目。

▪  高级引伸计:可放置阵列式多通道引伸计，并可通过全局/像素位置、长度和方向对单个引伸计进行编辑。

▪  剔除热膨胀:通过完全集成的扩展功能，从热效应中分离出纯机械应变。

▪  End-to-End Automation: Build seamless pipelines from acquisition to  post-processing using extensions that operate directly on raw data and  image sequences.

▪  Fluid Result Integration: New single-execution extensions write AOIs,  inspectors, and transformations directly back to your VIC-3D project.

▪  Temporal Data Access: Extensions can now access neighboring frames for  advanced time-series analysis, velocity calculations, and noise reduction.

▪  Persistent Configurations: Save user-defined extension arguments as  defaults to ensure cross-session consistency and eliminate repetitive setup.

▪  Expanded Standard Toolset: Native support for ISO 12004 (FLC), polar/ cylindrical coordinates, and noise floor analysis with full access to all 3D  variables.

▪  Open Python Framework: Write and deploy custom analyses as firstclass features within the UI, eliminating the need for external data exports.

▪  License-Free Viewer Mode: allows collaborators to open and inspect  projects in a read-only viewer

▪  Advanced Extensometer: whole arrays of extensometers can be placed  simultaneously, and individual extensometers can be edited by global/pixel  position, length, and direction.

▪  Subtract Thermal Expansion: isolate mechanical strain from thermal  effects with a fully-integrated extension.

vicpyx扩展功能介绍

vicpyx 框架于 VIC-3D 11 版本中推出，它取代了之前的 VIC-Py 架构，为处理、转换和导出 DIC 测量数据提供了强大的环境。通过支持在 VIC-3D 工作区中直接执行 Python 脚本，vicpyx 使研究人员无需离开原生环境，即可计算衍生量并应用复杂的坐标变换。这种集成简化了从原始全场数据到特定应用工程指标的转换过程。

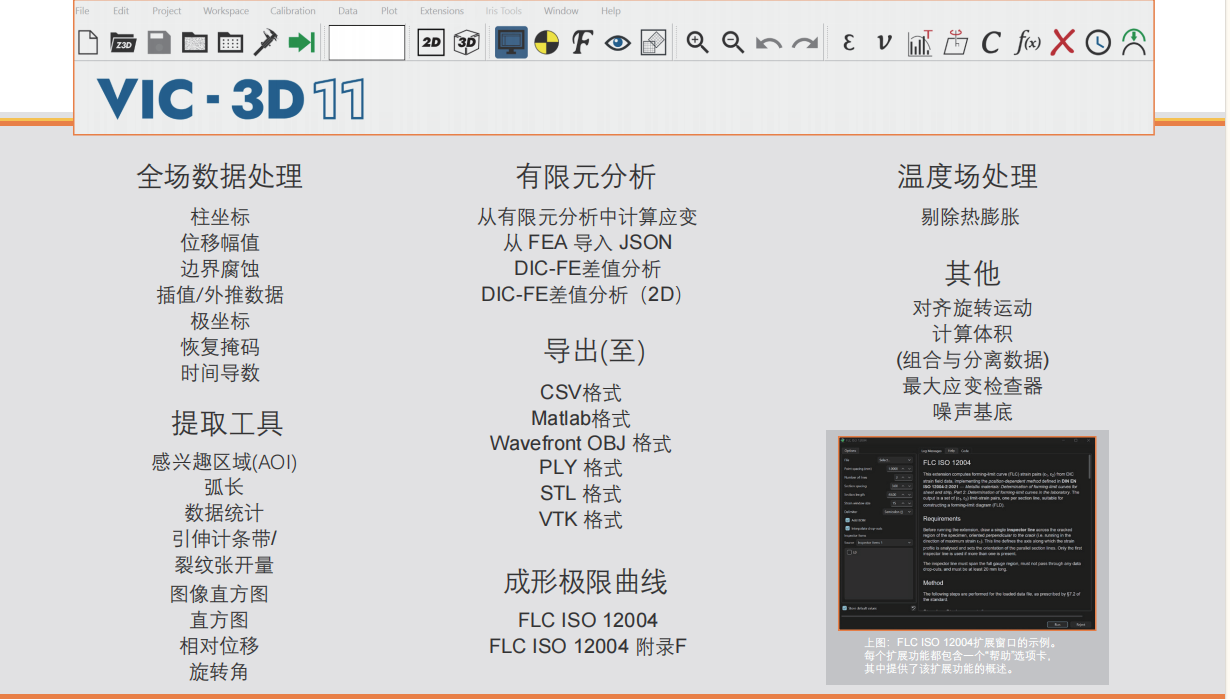

vicpyx 虽提供面向自定义开发的高级APl，但用户亦可借助专用扩展库直接调用其功能，无需编写代码。VIC-3D 11.4包含了一套针对常见研究工作流预配置的扩展功能模块。这些模块完全可自定义，并可在协作团队之间共享以确保数据处理的标准化。环境配置完成后，可通过简洁高效的菜单界面执行扩展功能。当前库(截至2026年7月)的分类如下:

Introduced in VIC-3D 11, the vicpyx framework succeeds the previous VIC-Py  architecture, providing a robust environment to manipulate, transform, and export  DIC measurement data. By enabling direct execution of Python scripts within the  VIC-3D workspace, vicpyx allows researchers to compute derived quantities and apply complex coordinate  transformations without leaving the native environment. This integration streamlines the transition from raw fullfield data to application-specific engineering metrics.

While vicpyx offers a high-level API for custom development, users can leverage its capabilities through a  dedicated Extension Library without writing code. VIC-3D 11.4 includes a suite of pre-configured extensions for  common research workflows. These modules are fully customizable and can be shared across collaborative  teams to ensure standardized data processing. Once the environment is configured, extensions are executed via  a streamlined menu interface. The current library (as of July 2026) is categorized as follows:

2025.11.24

Taking DIC to the Next Level with VIC-3D 11!

全新版本VIC-3D 11

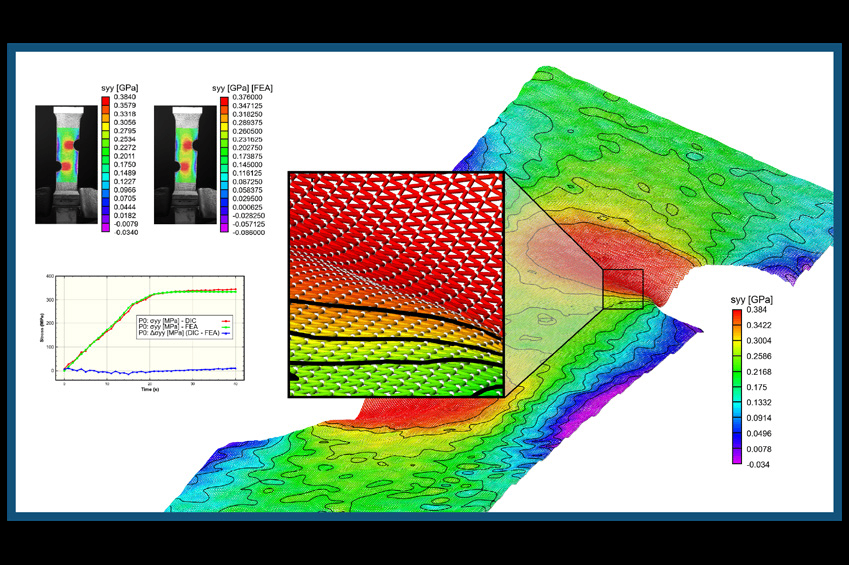

Correlated Solutions最新推出的VIC-3D 11现已上市。这款无与伦比的3D DIC分析软件搭载强大新功能，旨在提升用户体验的同时优化数据分析效率，本次更新聚焦于简化有限元分析（FEA）对比流程，显著提升对比的便捷性与精准度。全新VIC-Py扩展功能支持用户在VIC-3D工作区直接执行Python脚本，彻底告别繁琐的命令提示符操作。以下是一些重要新功能！

① VIC-Py 集成：

        · VIC-3D 11 对其深度集成的Python扩展系统进行了全面升级，支持用户在VIC-3D软件工作区内直接执行Python脚本，无需切换环境，这一功能的加入极大地增强了软件的灵活性和可定制性。

②有限元集成：

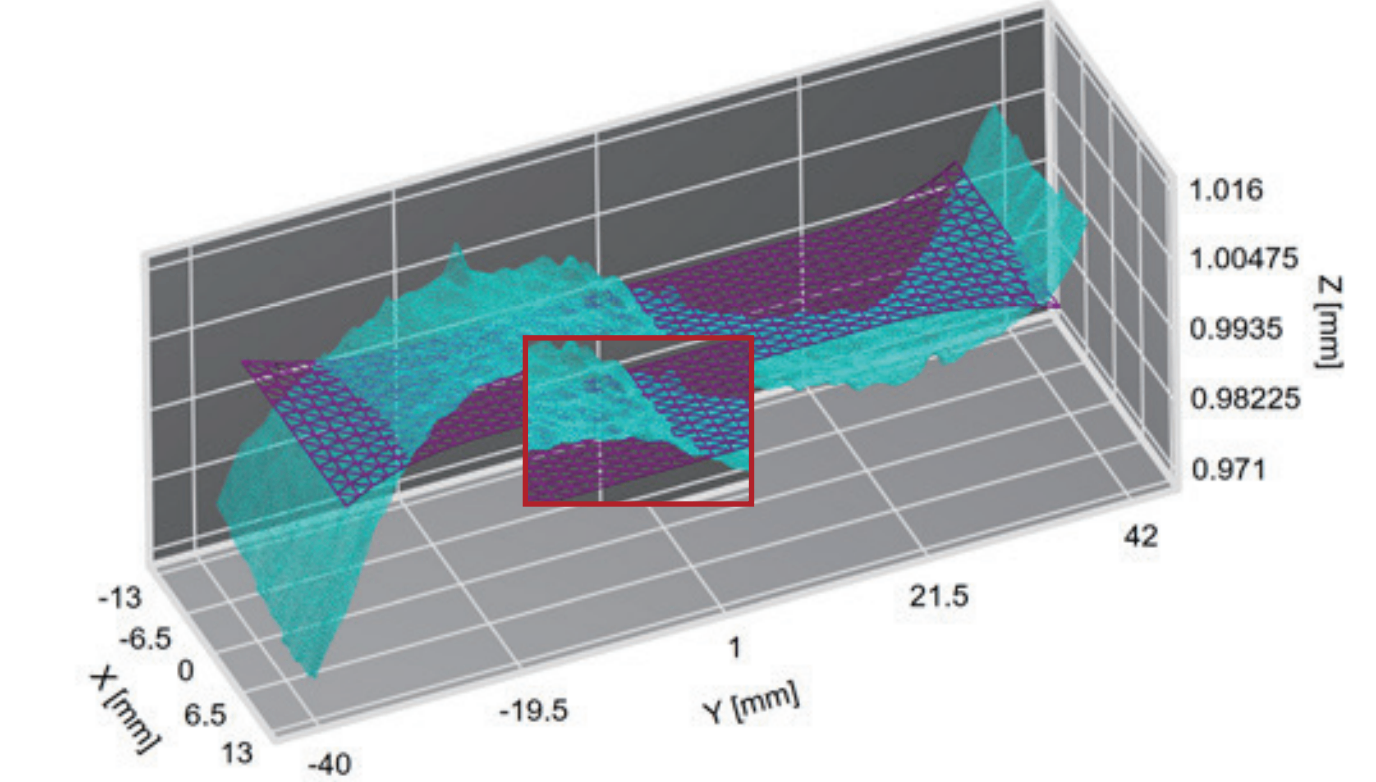

        · 有限元网格对齐：通过全新的直观对齐工作区，可轻松调整导入的有限元网格数据位置；

        · 材料模型估算：引入L-M优化器(Levenberg-Marquard toptimizer)进行材料模型估算，结合了梯度下降法和Gauss-Newton法的优点，能够在迭代过程中动态调整参数，从而更快地找到最优解；

        · 网格文件兼容性扩展：新增对多种网格数据文件的支持（包括OBJ、STL、PLY等格式）。

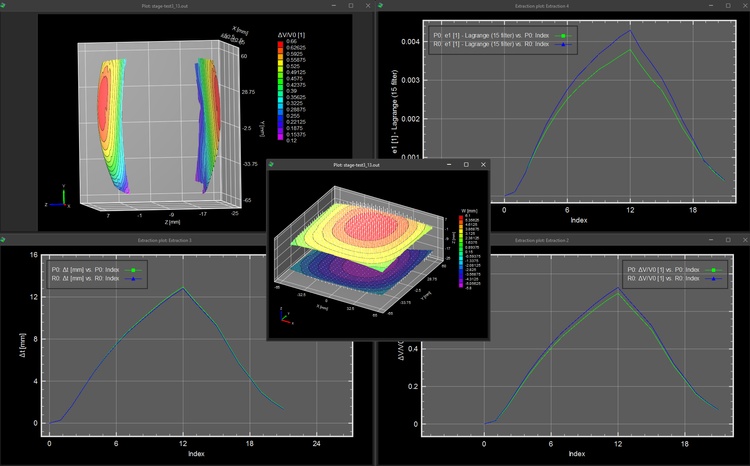

③ 可视化升级：

        · 独立次级坐标轴：支持在Iris提取图表中添加独立的次级坐标轴，并且可以将相关图表无缝导出为高分辨率静态图像或4K视频；

        · 丰富的全局偏好设置：全局偏好设置大幅扩展，检查器（Inspector）元素功能全面优化，用户可获得更全面的操控权；

        · 深色模式上线：新增深色模式（DARK MODE），有效减轻长时间工作的视觉疲劳；

        · 全新演示模板：提供多套专业设计的DIC数据展示模板，提升数字图像相关（DIC）成果展示效果。

We are proud to announce that VIC-3D 11, the latest release from Correlated Solutions, is now available. An unparalleled 3D DIC analysis software program with powerful new features, VIC-3D 11 has been designed to enhance the user’s experience while improving data analysis with a focus on making FEA comparison easier and more accurate. The all-new VIC-Py extension feature allows users to execute Python scripts within the VIC-3D workspace, eliminating the need to use cumbersome command prompts. Here are a few of the exciting new features.

① VIC-Py Integration：

        · VlC-3D 11 includes a major update to our fully integrated Python extension system for easy execution of scripts directly within VlC-3D.

② Finite Element Integration：

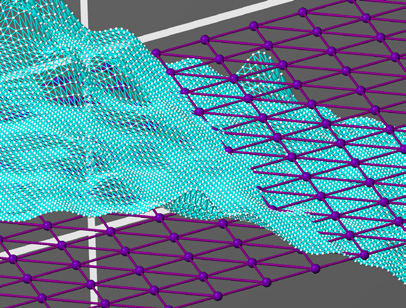

        · Easily adjust the position of imported FE mesh data using the intuitive new alignment workspace；

        · Material model estimation utilizing the Levenberg-Marquardt optimizer；

        · Additional support for mesh data files (OBJ,STL, PLY, and more).

③ Visualization Updates：

        · Independent SECONDARY AXES can now be added to line plots which can be exported seamlessly as high resolution still images or 4K videos.

        · Users have even more control with a significant expansion of global preferences and inspector element improvements.

        · And lower the strain curve on your eyes withDARK MODE!

        · Design effective DlC presentations with a set of ALL-NEW TEMPLATES!

2026年全新DIC硬件  New DlC Hardware in 2026

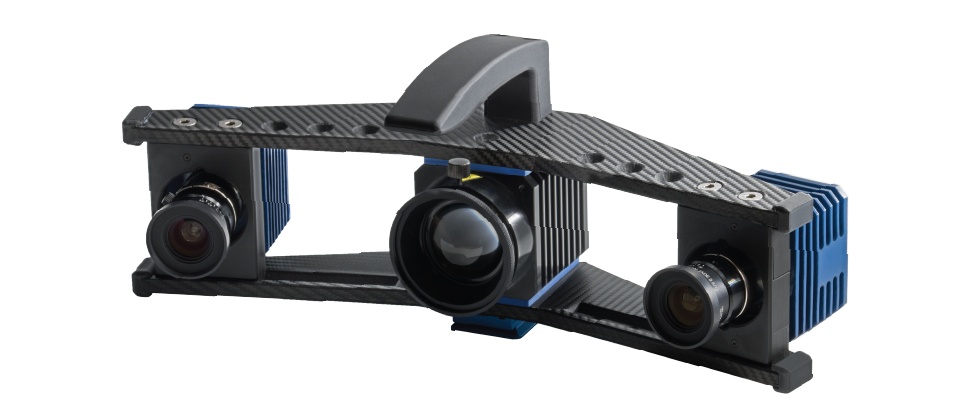

BLUE HAWK

开箱即用，快速测量（更多内容点击右侧图片直达详情页）

        · 定焦设计，确保测量的可靠重复性；

        · 可调LED光源，支持偏振光或荧光照明；

        · 可更换镜头，适配多种视野范围（FOV）；

        · 视野范围40–400 mm，兼具极高的测量分辨率。

BLUE HAWK

Unpack -Set up - Measure

        · Fixed-focus design for reliable repeatability;

        · Focusable LED for polarized or fluorescent illumination;

        · Interchangeable lenses for multiple field-ofview (FOV) options;

        · FOV range: 40 to 400 mm with excellent measurement resolution;

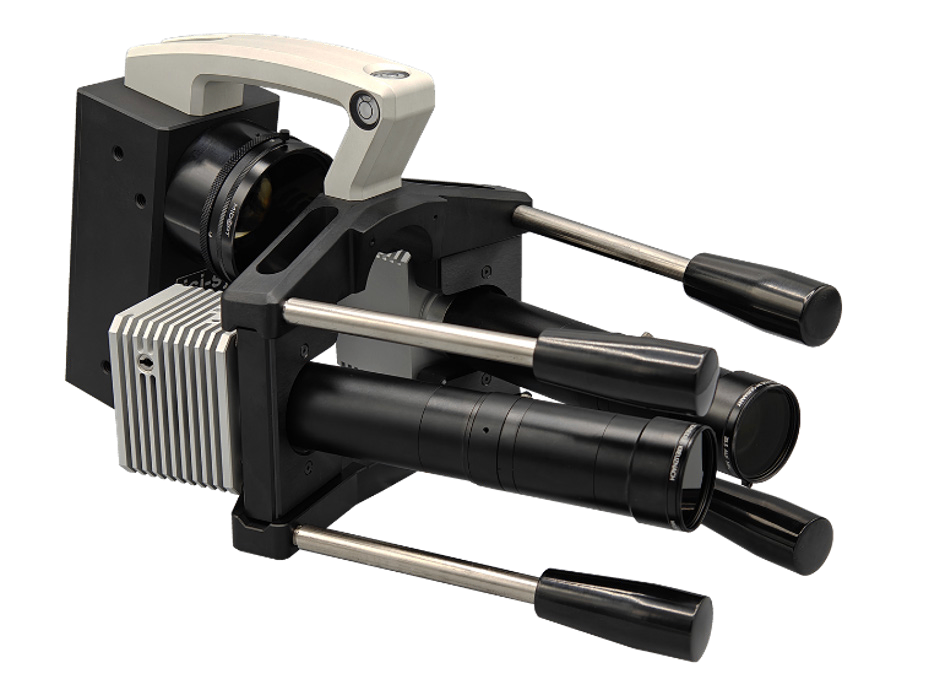

BLUE FALCON

原3D-Micro-DIC升级版（更多内容点击右侧图片直达详情页）

        · 适用于视频引伸计功能及实时反馈控制；

        · 应变噪声水平低至0.001%（10 με）；

        · 变形灵敏度达纳米级（1/100像素），具体取决于视野范围；

        · 结构紧凑坚固，预校准固定视野，校准状态稳定，可适应恶劣测试环境；

        · 专为小视野及超小视野（FOV）场景设计。

BLUE FALCON

(Formerly 3D-Micro-DlC)

        · Suitable for video extensometer functions & realtime feedback control;

        · Strain noise level down to 0.001% (10 με);

        · Deformation sensitivity in nm range (1/100 pixel)depending on field-of-view (FOV);

        · Compact and rigid design with pre-adjusted.fixed FOV & stable calibration;

        · Designed for small and very small fields-of-view.

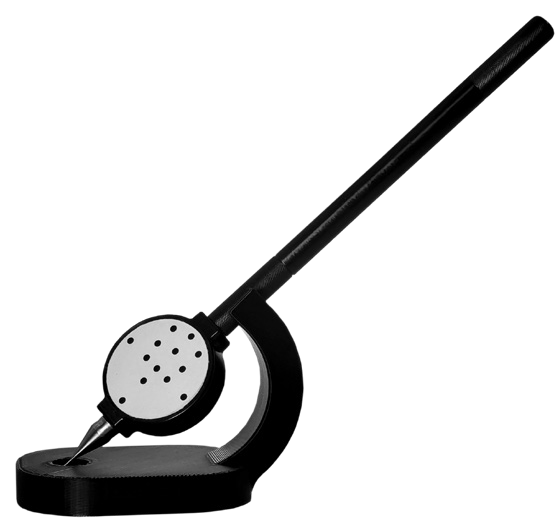

VIC-Probe

VIC-Probe系统支持用户物理接触样品表面关键测点，快速生成精准的坐标数据转换结果，以实现有限元分析（FEA）与DIC数据的无缝对齐与集成，并直接在VIC-3D软件中进行对比分析。

The VlC Probe system allows users to physically touch points on the 3D surface to create accurate data transformations for easy FEA alignment and integration directly into VlC-3D for comparison.

VIC.Gimbal

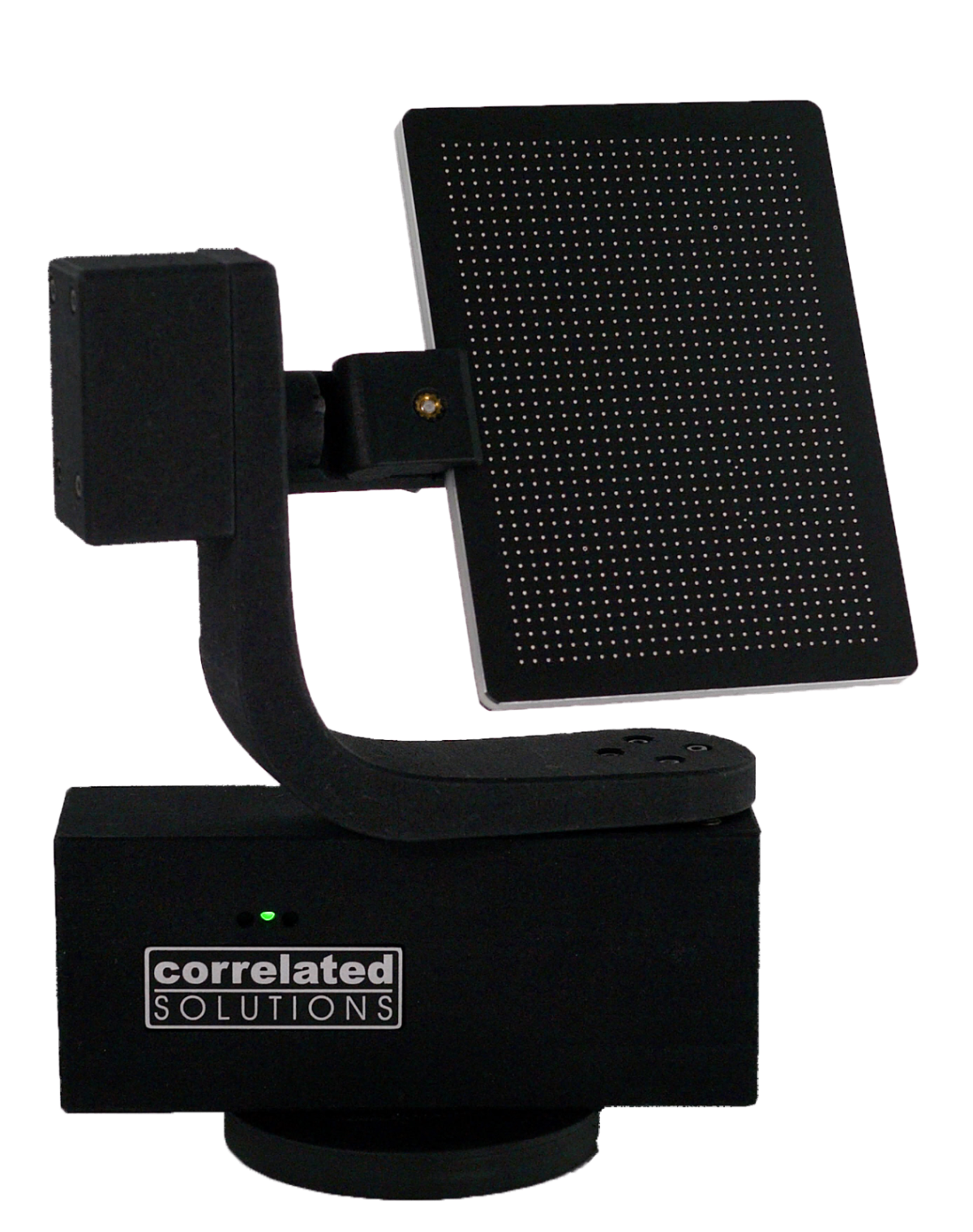

VIC-Gimbal专为VIC-3D系统的精密自动化标定设计，适用于隔离环境或受限测试场景（如气候舱、放射性环境），能够提供稳定可靠的标定解决方案。

Designed for precision, automated calibration of VlC-3D systems, the VIC-Gimbal provides the solution for testing in isolated or confined testing areas such as climate chambers or radioactive environments.

系统优势 System Highlights

我们的DIC系统以用户体验为核心设计，安装校准简便，操作友好。VIC-3D系统主要特点如下：

        · 有限元分析（FEA）与DIC数据对比：全新VIC-3D软件新增有限元预测与数字图像相关测量的快速精准对比功能，将为各领域工程师建立未来的标准工作流程。

        · 多功能与便捷性：超便携VIC系统支持多种环境轻松采集数据，支持现场实时处理或导出至办公室分析，支持浮动许可证或网络许可证在任意Windows电脑处理。

        · 软件集成与易用性：VIC软件套装界面直观统一，功能强大，包含报告生成、动画制作、Python脚本、跨应用复制粘贴、灵活完整的数据导出功能。

        · 性能与精度：VIC图像相关算法兼具高精度与超快速度，采用现代消费级多核处理器即可实现实时处理。单颗32核CPU每秒可处理高达1,000,000个数据点，领先行业数年，显著节省时间和成本，尤其适用于高分辨率图像处理或振动分析。

        · 技术实力与支持：Correlated Solutions支持团队工程师累计经验超200年，团队包含技术奠基人和知名作者，全程参与软件开发、硬件设计、系统集成与质量测试，确保最高品质和技术支持，可攻克最复杂应用难题。

        · 定制Python脚本：VICPy是Correlated Solutions提供的免费Python脚本库，用户可通过Python编程自定义数据处理流程，实现批量处理和可重复分析。定制脚本可根据需求开发（部分情况免费提供）。

Our DIC systems are designed with the user experience as the primary focus. They are simple to set-up, calibrate, and operate. A selection of the most important features of the VIC-3D system is listed below:

        · Compare FEA and DIC data using VIC-3D: Among the new features of the powerful VIC-3D software is the ability to quickly and accurately compare finite element predictions and digital image correlation measurements. This update will establish a soon-to-be essential workflow for engineers in many fields.

        · Versatility and Convenience: With our extremely portable VIC systems, data can be collected in a wide range of settings with ease. Results can be processed on the spot or data can be exported for analysis in the convenience of your office. Processing can also be done on any Windows PC with flexible floating licenses or network licenses.

        · Software Integration and Ease of Use: The VIC Software Suite is extremely easy to use and provides a user-friendly interface consistent throughout all applications. Powerful tools include report generation, animation creator, python scripting, copy & paste across Windows applications, and flexible and complete data export features.

        · Performance and Accuracy: The VIC image correlation algorithms are accurate and extremely fast. In fact, industry-leading real-time processing can be achieved using a modern consumer multi-core processor. Our systems can process up to 1,000,000 points per second using a single 32-core CPU, which is years ahead of the competition. This saves valuable time and money, especially for high-resolution image processing or when processing thousands of images for vibration analysis.

        · Experience, Knowledge, Technical Support: The Correlated Solutions support team includes engineers with a combined experience of over 200 years. This also includes well-known authors who have developed the technology from the ground up. Our team develops the software, designs hardware components, integrates all hardware, and tests all systems to ensure high quality while including the very best technical support from the manufacturer. The Correlated Solutions team has the experience to tackle even the most challenging applications to help get the most out of every VIC-3D system.

        · Custom Python Scripting: VICPy is Correlated Solutions’ free library of scripts written in the Python programming language. Python scripting can be used to create highly customized solutions by allowing users to manipulate VIC-3D data files. This is an exciting and empowering way to achieve repeatable results and is especially useful for batch processing. Custom scripts may also be developed upon request, and sometimes at no cost (evaluated on a case-by-case basis).

VIC-3D 扩展模块适用于以下专业应用领域：

 ▪ 振动测量

 ▪ 红外测量

 ▪ 显微测量

 ▪ 高速测量

 ▪ 高速（FFT）振动测量

 ▪ 超高速测量

若现有系统无法满足您的需求，请随时联系我们，我们可为您开发定制化系统。经验丰富的工程团队将乐意与您探讨具体应用方案。

VIC-3D add-on modules are available for the following specialized applications:

•  ▪ Vibration Measurements

•  ▪ Infrared Measurements

•  ▪ Microscopic Measurements

•  ▪ High-Speed Measurements

•  ▪ High-Speed (FFT) Vibration Measurements

•  ▪ Ultra High-Speed Measurements

If you don’t see a system suited to your needs, please contact us and we may be able to develop a customized system. Our experienced Engineering staff will be happy to discuss your application.

系统规格 System Specifications

VIC-3D交钥匙系统包含标准分辨率（SR）、高分辨率（HR）、超高分辨率（XR）、高速（HS）及超高速（UHS）成像设备，可满足您所有的测试需求。提供多种接口选择，包括USB 3.0、Firewire、GigE和CameraLink，每种接口在分辨率、采集速率和触发能力方面均具备独特优势。通过集成硬件支持高达2900万像素的分辨率和5MHz的帧率，并配备图像采集软件Vic-Snap，可实现便捷的数据采集与外部数据同步。以下为常见VIC-3D系统配置规格，但所有系统均可根据您的应用需求进行定制：

*通过合并或剪切提供更快的帧率

VIC-3D turn-key systems include standard resolution (SR), high resolution (HR), extra-high resolution (XR), high-speed (HS), and ultra-high-speed (UHS) imaging devices that will meet all of your testing needs. Various interfaces are available, such as USB 3.0, Firewire, GigE, and CameraLink, with each offering their own specific benefits in terms of resolution, acquisition rate, and triggering capabilities. Resolutions up to 29 MP and frame rates up to 5 MHz are supported with our integrated hardware, which includes our image acquisition software Vic-Snap to allow for easy data acquisition and external data synchronization. Below are the specifications for common VIC-3D systems configurations, but all systems are customized to your applications:

*Faster rates available via binning or clipping

VIC-3D应用  /Applications

Please view the interactive flash video below which contains some common VIC-3D applications.

Click here to download the VIC-3D datasheet.
